Features:

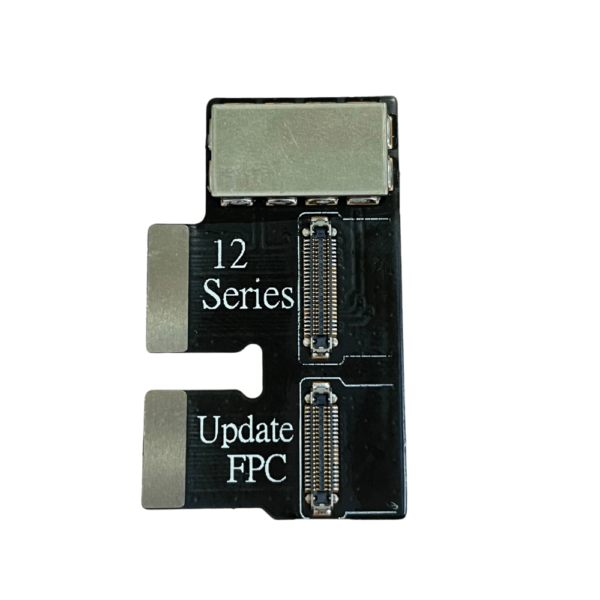

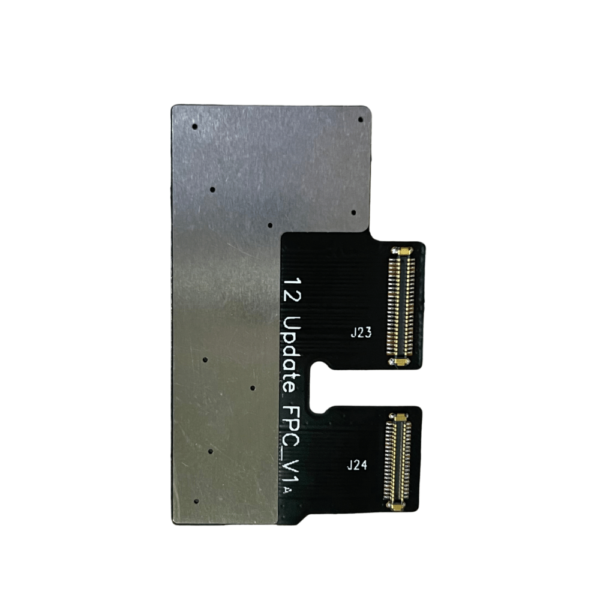

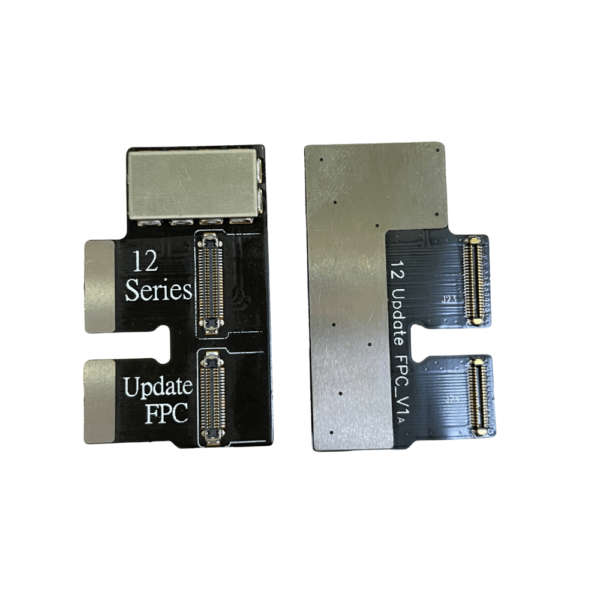

• This FPC Board made it possible for iTestBox 11 (S200) (OLD Version)  to test screens for iPhone 12 Mini / 12 / 12 Pro / 12 Pro Max.

How does it work

Step 1: Click to Download the system file.

Step 2: Update the system (follow the steps below)

1. please get an empty USB disk ready, format it with FAT32. Then extract the update file, then copy the extracted files into the root of Usb disk, don’t put these files into any directory.
2. Turn off the testbox, plug it into USB disk.
3. long-press the “ON/OFF” key and “BRIGHTEST” key, until the UPDATE light starts to twinkle, which means update starts, then plug-in charge line.
4. wait for about 25 mins, it beeps “Di”, the UPDATE light stays in GREEN, and no RED light shows. The update finished.

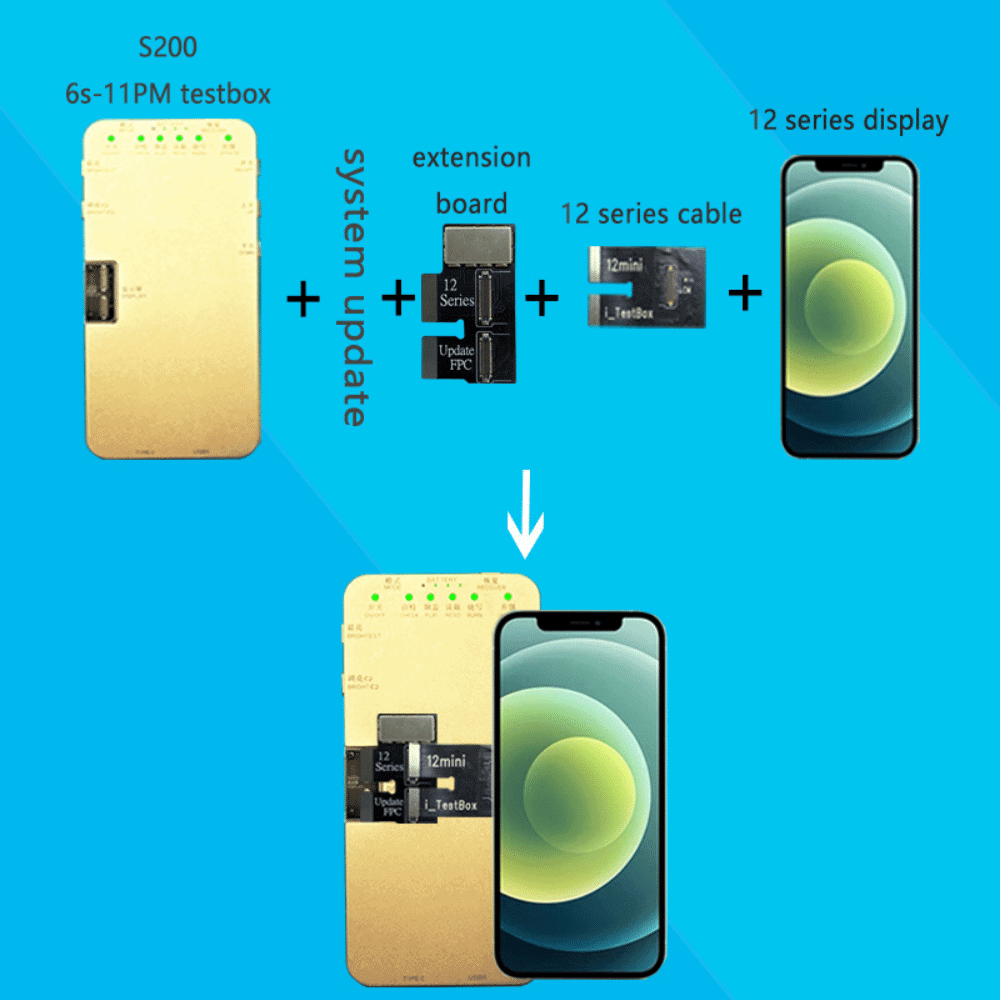

Step 3:  connect this FPC Board to base board

Step 4:  buy extra 12 series cables and plug-in this FPC Board and start testing.
